COMBAT APPLICATION TOURNIQUET (C-A-T)

(These are official North American Rescue OEM tourniquets)

COMBAT APPLICATION TOURNIQUET (C-A-T) - TACTICAL BLACK

Part# USVS-30-0001

COMBAT APPLICATION TOURNIQUET (C-A-T) - TRAINER BLUE

Part# USVS-30-0033

COMBAT APPLICATION TOURNIQUET (C-A-T) - RESCUE ORANGE

Part# USVS-30-0023

The fastest, safest, most effective prehospital tourniquet!

Exceeds the new ANSI/ISEA Z308.1-2021 Standard for tourniquets!

Noted as the best prehospital tourniquet in the February 2008 supplement of The Journal of Trauma The patented C-A-T® is a true one-handed tourniquet proven to be 100% effective by the U.S. Army’s Institute of Surgical Research. Tests proved that the CAT completely occluded blood flow of an extremity in the event of a traumatic wound with significant hemorrhage.The Gen 7 CAT utilizes a durable windlass system with a patented free-moving internal band providing true circumferential pressure to the extremity. Once adequately tightened, bleeding will cease and the windlass is locked into place. A hook and loop windlass retention strap is then applied, securing the windlass to maintain pressure during casualty evacuation. The patented Combat Application Tourniquet® (C-A-T®) featuring the proprietary red tip design and the mechanical advantage of a band within a band has been the Official Tourniquet of the U.S. Army since 2005. The innovations in the CAT are protected by U.S. Patent Nos. 7,842,067 and 7,892,253.

Product Enhancements:

  • NEW Single Routing Buckle for faster application, decreased blood loss, effective slack removal, fewer windlass turns, and simplified training with single protocol application standards

  • Reinforced windlass rod with increased diameter for enhanced strength and aggressive ribbing for improved grip

  • Bilateral windlass clip for rapid windlass lock and bilateral buttress for added strength

  • Enhanced windlass strap changed to tactical gray and sonic welded to clip for constant contact providing safe windlass security and a place to document the application time

  • Reinforced stabilization plate with beveled contact bar

  • Signature red elliptical tip (Red Tip Technology®) provides visual cue during application

  • Patented free-moving internal band for true evenly distributed circumferential pressure

Special Features:

  • Awarded as one of the “Top 10 Greatest Inventions” by the U.S. Army

  • Official Tourniquet of the U.S. Army

  • Used by both conventional and Special Operation forces

  • Proven to be 100% effective in occluding blood flow in both upper & lower extremities by the U.S. Army’s Institute of Surgical Research

  • True, one-handed application tourniquet

  • Quickly controls life-threatening extremity bleeding

  • Recommended by the Committee on Tactical Combat Casualty Care

  • Designed to perform in all weather conditions

  • Small and cost-effective

  • Protected by U.S. Patent Nos. 7,842,067 and 7,892,253

Dimensions:

  • Packaged: L 6 in. x W 2.4 in. x D 1.5 in.

  • Open Length: 37.5 in.

  • Weight: 2.7 oz



Available on…

Contract:

Federal Supply Schedule: 36F79722D0041

GSA: 47QSWA22D0012



QUANTUM BLOOD & FLUID WARMING SYSTEM

The Quantum Blood and Fluid Warming System from LifeWarmer is a Game-Changing innovation that has succeeded in closing a critical capability gap previously left exposed by other commercial off-the-shelf fluid warmers currently fielded. Size, weight, performance, and ease of use are no longer collective barriers to the delivery of whole blood in far forward and near point of injury (POI) prehospital casualty management.

(Complete System)

Part# USVS-35-0006

Note: A complete system includes: 1 x Controller, 1 x Battery, 1 x Charger, 2 x TTS-B

Additional accessories needed must be specified with quote request.



The Quantum Blood and Fluid Warming System from LifeWarmer is a Game-Changing innovation that has succeeded in closing a critical capability gap previously left exposed by other commercial off-the-shelf fluid warmers currently fielded. Size, weight, performance, and ease of use are no longer collective barriers to the delivery of whole blood in far forward and near point of injury (POI) prehospital casualty management.

The Quantum exceeds all healthcare and logistical requirements for the delivery of warmed blood or fluids across the defined spectrum of care. The system consists of unique thermal administration sets that incorporate sensing elements with an integrated heating system that does not disrupt the fluid path. With advanced intelligence throughout the system, the lightweight Controller modulates and moderates the energy flow to the integrated heating elements to ensure consistent normothermic fluid delivery to the casualty. The 44V battery is the smallest in category, able to rapidly adjust power distribution based on the temperature and flow rate of the input fluid. This creates a highly efficient system capable of previously unrealized performance optimizations. The Quantum system has an operational weight of just 22 total ounces yet can deliver two units of 39°F Whole Blood (WB) at 100mL/min with an output temperature of 100.4°F (38°+/- 2°C) with only a 24 second warm-up period. The Quantum Blood and Fluid Warming System provides the Tactical Health Care Professional with significant technological overmatch in the fight to eliminate preventable combat death.

SPECS

Quantum Operating Parameters:

IV Fluids

  • Lightweight The lightest operational weight of any portable blood & fluid warming system (Total Operational Weight: 22 oz)

  • Powerful Warms two units of 39°F refrigerated whole blood at 100mL/min+ on a single charge

  • Compact Fewest components to carry (only three)

  • Fast Warm-up time of only 24 seconds

  • Intuitive The thermal transfusion/infusion set looks, handles, and sets up/primes like any conventional IV set

  • Safe Tested safe for blood, blood products and IV solutions

  • Effective The system is plug-and-play for ease of setup under stressful conditions such as tactical field care (only two connection points, with no plug orientation or set-up order requirements system status constantly visible at a glance)

  • Complete Does not require additional standard transfusion or infusion set – all other warmers do

  • Tactical Only system FDA cleared allowing easy disable of audible alerts to protect operators in combat

  • Input Temp: 68°F

  • Output Temp: 100.4°F (38°+/- 2°C)

  • Flow-Rate: 2 - 200ml/min (+)

  • Warm-up Time: 24 seconds

  • Warming Capacity with a Single Battery: 1700 mL

Blood or Blood Products

  • Input Temp: 39°F

  • Output Temp: 100.4°F (38°+/- 2°C)

  • Flow-Rate: 2 - 100mL/min (+)

  • Warm-up Time: 24 seconds

  • Warming Capacity with Single Battery: 2 units (+)

Quantum System Contents:

  • 1 x Controller

  • 1 x Battery

  • 1 x Battery Charger

  • 2 x TTS-B (Thermal Transfusion Set - Blood)

  • NOTE: TTS-B is Single Use Only, Supplied sterile via Ethylene Oxide

  • TTS-B Drip rate: 20 gtts/ml

Product Weights:

  • Battery: 16 oz

  • Controller: 3 oz

  • Thermal Transfusion Set (TTS-B): 2.7 oz

  • Charger: 22 oz

  • Total Operational Weight: 22 oz
    (Controller, Battery & TTS-B)

Part# USVS-35-0006


available on…

Contract:

GSA: 47QSWA22D0012

Federal Supply Schedule: 36F79722D0041



Quantum Life Warmer Accessories


QUANTUM BATTERY

The Quantum Battery from LifeWarmer is an extremely powerful and intelligent battery in a small, lightweight package- weighing only 16 oz. The Quantum Battery powers the whole warming system with state-of-the-art Lithium Polymer cells harnessing 44 Volts of electrical potential. The battery, fully charged, is able to warm and maintain up to 2 units ( 900mL +/- 100mL) of cold (4ºC) blood products or IV solutions to a pre-set temperature of 100.4°F (38°+/- 2°C) at a flow rate of 100 mL/min (depending on the ambient temperature). Or, approximately 1700 mL of 20ºC IV solution to a set point of 38ºC +/- 2ºC at a flow rate of 200 mL/min.

The Quantum Battery is built for use in the most austere and tactical environments. It is IP67 rated for water resistance and is the only portable fluid warming battery that has a disable feature on the audible alarm for tactical considerations. The Quantum Life Warmer Battery is rechargeable with a service life of 500 charge/discharge cycles.

It is important to keep the Quantum Battery charged and ready for use. Always re-charge after deployment, even if the battery was not fully discharged. The battery can be kept plugged into the Quantum Charger, as the intelligent Battery senses charge demand and will charge as needed but never overcharge. The Battery has a “Status” button to check the state of charge at any moment, with 3 colored LEDs to inform the user about the condition of the battery.

SPECS

  • Lightweight at only 16 oz

  • Designed for the tactical environment- water resistant, subdued color, and the option to disable the audible alarm

  • 44V Lithium-Polymer Battery

  • Intelligent, state-of-the-art battery technology

  • Rated 910 mAh capacity

  • 40.4 Wh Energy Rating

  • IP67 Rated water resistant

  • Service Life 3 years or 500 charge/discharge cycles

  • Operating Conditions: -20ºC to 50ºC for use, 0ºC to 45ºC for charging

  • Storage conditions: -20ºC to 60ºC

Dimensions:

  • Battery Case: H 4.5 in. x W 3.25 in. x D 1.25 in.

  • Weight: 16 oz

Part# USVS-35-0001


QUANTUM CHARGER

The Quantum Battery Charger from LifeWarmer is an AC-powered reusable device that can fully charge the Quantum Battery rapidly and safely. The Charger has built-in algorithms to ensure proper, steady charging without overcharging or damaging the health and integrity of the battery. The Battery can go from nearly 0% to full within 90 minutes. The Life Warmer Charger has two colored LED lights to inform the provider of the status of charge and condition of the battery.

The Quantum Battery Charger connects to the Battery via an omni-directional plug that allows for rapid energy transfer while prioritizing safety even in cases of hasty disconnection. The Quantum Battery will alert the user if there is any issue associated with the health of the battery. The Charger comes supplied with a 6-foot AC power cord.

SPECS

Dimensions:

  • Charger: H 6 in. x W 2.25 in. x D 1.75 in.

  • AC power cord length: 6 feet

  • Charger Weight: 1 lb 4 oz

  • Weight with cord: 1 lb 10 oz

Part# USVS-35-0002


THERMAL INFUSION SET - TIS - PACK OF 2

The Quantum Thermal Infusion Set (TIS) from LifeWarmer is the revolutionary IV tubing set that allows for safe, rapid warming of IV fluids without adding hardly any additional steps to the normal IV setup process. Modeled after standard IV infusion tubing, the familiar configuration allows for ease of use. The sophisticated intelligence and proprietary warming technology are integrated into the tubing system for simplicity and to reduce additional equipment and procedural steps. Roughly the same size and weight as standard IV tubing, there is almost no additional equipment burden.

The Quantum IV administration tubing is double-extruded to yield a configuration that has both an inner tubing layer and an outer tubing layer. A conductive heating element is between the two layers but does not come in contact with the fluid path or disrupt the laminar flow. The outer tubing layer acts as an insulator while the inner tubing layer transfers the heat from the heating element to the fluid path. Thermistors located in the tubing continually measure temperature and provide that input to the Quantum Controller. The monitoring and independent application of energy (heat) along the fluid path allows the Quantum to respond to varying temperature inputs from the fluid source to near the point of patient entry to ensure fluid temperature is the right temperature at delivery.

The Quantum Life Warmer, fully charged, is able to warm and maintain up to approximately 1700 mL of 20ºC IV solution to a set point of 100.4°F (38°+/- 2°C)  at a flow rate of 200 mL/min. Effective warming flow rates range from 2 to 200 mL/minute depending on input fluid temperature and ambient conditions.

SPECS

  • Similar size and weight to traditional IV tubing

  • Intelligent sensing and heating elements from LifeWarmer integrated into the walls of the tubing set

  • No disruption to the fluid path or laminar flow of the fluid

  • Easy bi-directional connection to the Quantum Life WarmerController

  • Compatible with standard IV fluids

  • Standard Spike with Vent

  • 15 micron particulate filter

  • Luer-activated injection site

  • Male Luer lock adapter

  • Tubing length: 80 in.

  • Priming Volume: 16mL

  • Drip Chamber: 20 gtt/ml

  • Single Use Only, Supplied sterile via Ethylene Oxide

  • Drip rate: 20 gtts/ml

Dimensions:

  • TIS packaged (each): 6.5 in. x 11 in.

  • Tubing Length: 80 in.

  • Weight: TIS (each): 2.1 oz

  • Packaged (2 TIS & box): 10 oz

Caution: NOT for standalone use with blood products. Fluid path and areas under protective end caps are sterile. DO NOT place on sterile field. Do not use if end caps are not in place. Replace tubing per CDC guidelines and/or institutional protocols

Part# USVS-35-0004


THERMAL TRANSFUSION SET - (BLOOD) TTS-B - PACK OF 2

The Quantum Thermal Transfusion Set- Blood from LifeWarmer is the revolutionary IV tubing set that allows for safe, rapid warming of blood, blood products, or IV fluids without adding hardly any additional steps to the normal IV setup process. Modeled after standard blood infusion tubing, the familiar configuration allows for ease of use. The sophisticated intelligence and proprietary warming technology are integrated into the tubing system for simplicity and to reduce additional equipment and procedural steps. Roughly the same size and weight as standard blood tubing, there is almost no additional equipment burden.

The Quantum IV administration tubing is double-extruded to yield a configuration that has both an inner tubing layer and an outer tubing layer. A conductive heating element is between the two layers but does not come in contact with the fluid path or disrupt the laminar flow. The outer tubing layer acts as an insulator while the inner tubing layer transfers the heat from the heating element to the fluid path. Thermistors located in the tubing continually measure temperature and provide that input to the Quantum Controller. The monitoring and independent application of energy (heat) along the fluid path allows the Quantum to respond to varying temperature inputs from the fluid source to near the point of patient entry to ensure fluid temperature is the right temperature at delivery.

The Quantum Life Warmer, fully charged, is able to warm and maintain up to 2 units ( 900mL +/- 100mL) of cold (4ºC) blood products or IV solutions to a pre-set temperature of 100.4°F (38°+/- 2°C) at a flow rate of 100 mL/min (depending on the ambient temperature). Or, approximately 1700 mL of 20ºC IV solution to a set point of 38ºC +/- 2ºC at a flow rate of 200 mL/min. Effective warming flow rates range from 2 to 200 mL/minute depending on input fluid temperature and ambient conditions.

SPECS

  • Compatible with blood, blood products, and standard IV fluids

  • Similar size and weight to traditional IV tubing

  • Intelligent sensing and heating elements from LifeWarmer integrated into the walls of the tubing set

  • No disruption to the fluid path or laminar flow of the fluid

  • Easy bi-directional connection to the Quantum Life Warmer Controller

  • Dual Spike with Vent

  • 200 micron filtered drip chamber

  • Luer-activated injection sites (2)

  • Male Luer lock adapter

  • Tubing length: 80 in.

  • Priming Volume: 22mL

  • Single Use Only, Supplied sterile via Ethylene Oxide

  • Drip rate: 20 gtts/ml

Dimensions:

  • TTS-B package (each): 6.5 in. x 11 in.

  • Tubing Length: 80 in.

  • TTS-B Weight (each): 2.6 oz

  • Packaged Weight (2 TTS-B & box): 11 oz

Caution: For Administration of blood, blood components, or solutions with the Quantum Blood and IV Fluid Warming System. Fluid path and areas under protective end caps are sterile. DO NOT place on sterile field. Do not use if end caps are not in place. Replace tubing per CDC guidelines and/or institutional protocols.

Part# USVS-35-0005


QUANTUM CONTROLLER

The Quantum LifeWarmer Controller is the command center of the Quantum Blood and Fluid Warming System. It contains the microprocessor and control algorithm that continually assesses temperature input from tubing thermistors and regulates the energy provided to the tubing heating elements in the proximal and/or distal segments to reach and maintain temperature between 100.4°F (38°+/- 2°C) at patient delivery. The Controller receives power when connected to the Battery and modulates the energy flow to the TIS/TTS-B. The Quantum Controller has two connections, one for the battery and one for the Thermal Tubing of choice. The connection to the battery is an omni-directional plug for ease of insertion and the connection is safe and secure. The connection to the TIS or TTS-B is bi-directional and simple to execute- it’s plug and play.

The Controller has LED lights on the shoulder of the device to inform the user about the output temperature and flow of the fluid. It will visually alert the care provider to the status of the system.

The Controller is reusable and comes fitted with a Jacket that permits the mating (connection) of the TIS or TTS-B Life Warmer tubing circuit connector to the connector slot on the Controller.

SPECS

Dimensions:

  • Controller Body: W 1.25 in. x H 3 in. x D 0.75 in.

  • Controller Total Length: 51.25 in.

  • Weight (Controller only): 2.5 oz

  • Packaged Weight: 5 oz

Part# USVS-35-0003


QUANTUM CONTROLLER COVER

The LifeWarmer Controller comes fitted with a cover that permits the mating (connection) of the TIS or TTS-B tubing circuit connector to the connector slot on the Controller. The Controller Cover should remain in place for device operation. The Cover also protects the Controller and should be replaced after approximately 10 uses or 6 months.

SPECS

  • Protects connection points of the Quantum Controller from the environment

  • The Controller Cover should be replaced after every 10 uses (approximate) or six months (whichever occurs first) or at anytime the Controller Cover appears damaged, loose-fitting, or compromised.

Product Specs:

  • Weight: 0.23 oz

  • Dimensions: H 3.125 in. X W 1.125 in. x D .675 in.

Part# USVS-35-0010


QUANTUM HARD CASE

The Quantum Hard Case is a durable, hard case designed to protect your LifeWarmer Quantum Blood & Fluid Warming System from the elements and rigors of transport and storage. Each case features a custom laser cut high density foam insert that securely holds up to three Quantum Batteries, any combination of two TTS-B or TIS sets, two Quantum Controllers, and the Quantum User Manual.

The light-weight case is made with polypropylene copolymer and has comfort molded handles with spring loaded latches. The case can be locked or tamper sealed using the molded eyelets. The lid seals with a rugged o-ring seal that is air and water tight up to a 3ft depth and protects the contents from moisture, dust, and dirt.

SPECS

  • Rugged hard case designed to protect your Quantum from dust, dirt, and moisture

  • Features pressure relief valve for automatic pressure equalization

  • Custom laser cut high density foam holds components securely in place

  • Flexible storage capacity for multiple batteries, controllers and thermal tubing sets

Dimensions:

  • Case Outer Dimensions: 10.63 in. x 9.63 in. x 6.73 in.

  • Case Weight: 3.22 lbs

Part# USVS-35-0008


available on gsa…

Contract:

Federal Supply Schedule: 36F79722D0041

GSA: 47QSWA22D0012



COMBAT GAUZE TRAINER

Combat Gauze Trainer is an inert gauze that is designed for instructional purposes only

The Combat Gauze™ Trainer is designed to provide a gauze training aid for use during instructional scenarios. Ideal for treatment simulations and wound packing exercises utilizing artificial blood or other training aids, it is a completely inert training gauze (no hemostatic properties) that allows for proper instruction of the application of Combat Gauze.

SPECS

Completely inert

Allows medical trainers to thoroughly instruct personnel on the proper application of Combat Gauze™

Dimensions:

  • Packaged - H 6 in. x W 4.5 in. x D 1.25 in.

  • Gauze - L 4 yd x W 3 in.

  • Weight: 0.75 oz

Part# USVS-30-0063


available on gsa…

Contract:

Federal Supply Schedule: 36F79722D0041

GSA: 47QSWA22D0012

TOMMANIKIN - BASIC

Introducing North American Rescue's latest offering in state-of-the-art training simulators, the TOMManikin® - Tactical Operation Medical Manikin. The TOMManikin simulators provide the ability to enhance training in Tactical Combat Casualty Care (TCCC) from Point of Injury to transfer of higher care. This all-in-one system allows instructors to build multiple realistic traumatic casualty scenarios with reactive patients. The TOMM Series is designed for use in classroom settings, trauma lanes and field training scenarios. Unique advantages to the system include multiple, available interchangeable appendages that can present a variety of wounding patterns such as gunshot, blast and burns to provide full mission profiles in combat scenarios, disaster re-creations and mass casualty events.

Constructed of silicone and welded steel, TOMManikin weighs more than 160 pounds with extremities that can withstand up to 6,000 pounds of pressure, making these rugged remote controlled simulators the ideal choice for confined space, building collapse, care under fire, and entrapment training scenarios. Intervention capabilities on all manikins include tourniquet application, airway management (basic to advanced), needle decompression, chest tube, IV/IO, and wound packing.

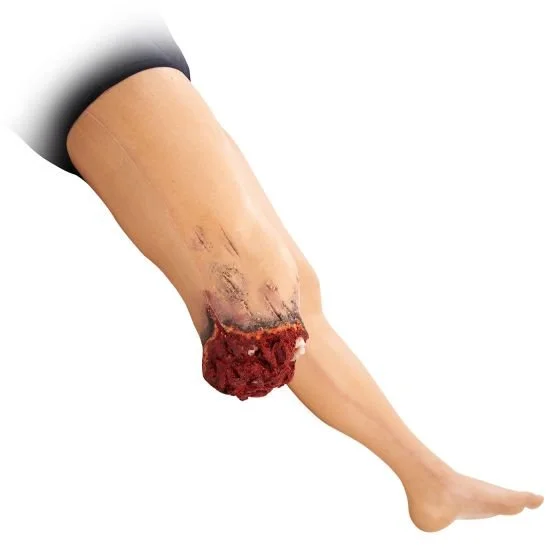

The BASIC TOMManikin features partial amputation to arm, full amputation to leg ~ both tourniquet-responsive.
In addition to the manikin itself, All TOMM packages include:

  • NARS Advanced Remote Tablet and Software enabling wireless control of multiple TOMManikin units with capabilities of bleeding, breathing, multiple voice tracks, pulse rates, pulse pressure and realistic responses to responder interventions

  • 1.2 gallon onboard blood reservoir

  • 1400 Pelican Accessories Case

  • TOMManikin 12v / 5 and 10 Amp NiMH rechargeable batteries each with its own smart charger

  • T handle tool (for extremity changing) and various air & fluid replacement connectors

  • TOMManikin Operator's Manual

  • 1-year warranty

  • Velcro uniform

  • NAR IFAK

  • 35 'bleeding' operative sites for surgical airways and chest tubes

  • 2-way communication instructor-worn Bluetooth® headset

SPECS

  • All-in-one, hyper-realistic trauma simulator enabling instructors to build multiple realistic traumatic casualty scenarios with reactive patients

  • Industry-leading durable construction features a powder-coated, welded steel frame, solid steel joints and rugged silicone skin with extremities interchangeable between all TOMM platforms

  • Bends and rotates for realistic patient movement at the arms, legs and waist

  • Intervention capabilities include tourniquet application, airway management (basic to advanced), needle decompression, chest tube, CPR chest compression, pelvic stabilization, IV/IO, and wound packing

  • Onboard power via a 12v / 5 amp & 10 amp standard nickel metal hydride (NiMH) batteries

  • 1.2 gallon onboard blood reservoir facilitating massive bleeding from multiple locations

  • BASIC TOMManikin features partial amputation to arm, full amputation to leg ~ both tourniquet-responsive

  • Available in Light Tone or Deep Tone skin

Operational Medical Procedures:

  • Tourniquets (proximal, junctional, and abdominal tourniquets)

  • Active bleeding controllable by direct pressure on pressure points

  • Wound packing with realistic bleeding control

  • Nasopharyngeal and oral airways, supraglottic airway insertion and endotracheal intubation

  • Surgical airway with realistic bleeding and tissue dissection. 35 operative sites included

  • Remote controlled breathing rates: Slow, Normal, and Fast

  • Bilateral Needle Decompression at either 2nd/3rd intercostal (mid-clavicular), or 5th/6th intercostal (mid-axillary) locations

  • Realistic chest seal application & adhesion

  • Chest Tube capable (bilateral)

  • Radial pulses in uninjured upper extremities and bilateral carotid pulses

  • Variable pulse rate & pressure (Normal, bounding, thready)

  • IO (sternal & humoral) and antecubital IV access on uninjured upper extremities

BASIC TOMManikin Package:

  • 1 x TOMManikin, BASIC with partial amputation to left arm, full amputation to right leg

  • 1 x ITTS Advanced Remote Tablet and Software

  • 1 x 12v / 5 amp rechargeable NiMH battery with Smart Charger

  • 1 x 12v / 10 amp rechargeable NiMH battery with Smart Charger

  • 1 x 1.2 gallon onboard blood reservoir

  • 1 x 1400 Black Pelican Accessories Case

  • 1 x T handle tool (for extremity changing) and various air & fluid replacement connectors

  • 1 x TOMManikin Operator's Manual

  • 1 x 1-year warranty document

Dimensions:

  • Pelican Accessories Case: L 13.74 in. x W 11.63 in. x D 5.9 in.

  • Weight: Manikin - 180 lb | Total package: 240 lb

Part# USVS-93-0035


Available on gsa…

GSA Contract# 47QSWA22D0012

TOMMANIKIN - BLAST

Introducing North American Rescue's latest offering in state-of-the-art training simulators, the TOMManikin® - Tactical Operation Medical Manikin co-developed by North American Rescue Simulation (NARS) and Techline Technologies. TOMManikin simulators provide the ability to enhance training in Tactical Combat Casualty Care (TCCC) from Point of Injury to transfer of higher care. This all-in-one system allows instructors to build multiple realistic traumatic casualty scenarios with reactive patients. The TOMM Series is designed for use in classroom settings, trauma lanes and field training scenarios. Unique advantages to the system include multiple, interchangeable appendages that can present a variety of wounding patterns such as gunshot, blast and burns to provide full mission profiles in combat scenarios, disaster re-creations and mass casualty events. Constructed of silicone and welded steel, TOMManikin weighs more than 160 pounds with extremities that can withstand up to 6,000 pounds of pressure, making these rugged remote controlled simulators the ideal choice for confined space, building collapse, care under fire, and entrapment training scenarios. Intervention capabilities on all manikins include tourniquet application, airway management (basic to advanced), needle decompression, chest tube, IV/IO, and wound packing.

BLAST TOMManikin features Skull with blast/burned head skin, packable abdominal evisceration, shrapnel wound right arm, and full amputation left leg (tourniquet-responsive). In addition to the manikin itself, all TOMM packages also include:

  • NARS Advanced Remote Tablet and Software enabling wireless control of up to 12 TOMManikin units with capabilities of bleeding, breathing, multiple voice tracks, pulse rates, pulse pressure and realistic responses to responder interventions

  • 1.2 gallon onboard blood reservoir

  • 1400 Pelican Accessories Case

  • TOMManikin 12v / 5 and 10 Amp NiMH rechargeable batteries each with its own smart charger

  • T handle tool (for extremity changing) and various air & fluid replacement connectors

  • TOMManikin Operator's Manual

  • 1-year warranty

SPECS

  • All-in-one, hyper-realistic trauma simulator enabling instructors to build multiple realistic traumatic casualty scenarios with reactive patients

  • Industry-leading durable construction features a powder-coated, welded steel frame, solid steel joints and rugged silicone skin with extremities interchangeable between all TOMM platforms

  • Bends and rotates for realistic patient movement at the arms, legs and waist

  • Equipped with Advanced Remote Tablet and Software enabling wireless control of up to 12 TOMManikin units with capabilities of bleeding, breathing, multiple voice tracks, pulse rates, pulse pressure and realistic responses to responder interventions

  • Intervention capabilities include tourniquet application, airway management (basic to advanced), needle decompression, chest tube, IV/IO, and wound packing

  • Onboard power via a 12v / 5 amp & 10 amp standard rechargeable nickel metal hydride (NiMH) batteries

  • 1.2 gallon onboard blood reservoir facilitating massive bleeding from multiple locations

  • BLAST TOMManikin features Skull with blast/burned head skin, packable abdominal evisceration, shrapnel wound right arm, and full amputation left leg (tourniquet-responsive)

  • Available in Light Tone or Deep Tone skin

Operational Medical Procedures:

  • Tourniquets (proximal, junctional, and abdominal tourniquets)

  • Active bleeding controllable by direct pressure on pressure points

  • Wound packing with realistic bleeding control

  • Nasopharyngeal and oral airways, supraglottic airway insertion and endotracheal intubation

  • Surgical airway with realistic bleeding and tissue dissection. 35 operative sites included

  • Remote controlled breathing rates: Slow, Normal, and Fast

  • Bilateral Needle Decompression at either 2nd/3rd intercostal (mid-clavicular), or 5th/6th intercostal (mid-axillary) locations

  • Realistic chest seal application & adhesion

  • Chest Tube capable (bilateral)

  • Radial pulses in uninjured upper extremities and bilateral carotid pulses

  • Variable pulse rate & pressure (Normal, bounding, thready)

  • IO (sternal & humoral) and antecubital IV access on uninjured upper extremities

  • Packable abdominal evisceration

BLAST TOMManikin Package:

  • 1 x TOMManikin, BLAST including Skull with blast/burned head skin, packable abdominal evisceration, shrapnel wound right arm, and full amputation left leg (tourniquet-responsive)

  • 1 x ITTS Advanced Remote Tablet and Software

  • 1 x 12v / 5 amp rechargeable NiMH battery with Smart Charger

  • 1 x 12v / 10 amp rechargeable NiMH battery with Smart Charger

  • 1 x 1.2 gallon onboard blood reservoir

  • 1 x 1400 Black Pelican Accessories Case

  • 1 x T handle tool (for extremity changing) and various air & fluid replacement connectors

  • 1 x TOMManikin Operator's Manual

  • 1 x 1-year warranty document

Dimensions:

  • Measurements: L 40 in. x 36 in. x 48 in.

  • Weight: Manikin - 180 lb | Total package: 240 lb

  • Pelican Accessories Case: L 13.74 in. x W 11.63 in. x D 5.9 in.

Part# USVS-93-0036


available on gsa…

GSA Contract #47QSWA22D0012

TOMMANIKIN - GSW

Introducing North American Rescue's latest offering in state-of-the-art training simulators, the TOMManikin® - Tactical Operation Medical Manikin co-developed by ITTS and Techline Technologies. TOMManikin simulators provide the ability to enhance training in Tactical Combat Casualty Care (TCCC) from Point of Injury to transfer of higher care. This all-in-one system allows instructors to build multiple realistic traumatic casualty scenarios with reactive patients. The TOMM Series is designed for use in classroom settings, trauma lanes and field training scenarios. Unique advantages to the system include multiple, interchangeable appendages that can present a variety of wounding patterns such as gunshot, blast and burns to provide full mission profiles in combat scenarios, disaster re-creations and mass casualty events. Constructed of silicone and welded steel, TOMManikin weighs more than 160 pounds with extremities that can withstand up to 6,000 pounds of pressure, making these rugged remote controlled simulators the ideal choice for confined space, building collapse, care under fire, and entrapment training scenarios. Intervention capabilities on all manikins include tourniquet application, airway management (basic to advanced), needle decompression, chest tube, IV/IO, and wound packing.

GSW (Gunshot Wound) TOMManikin features a sucking chest wound (with anterior entry / posterior exit), junctional tourniquet/packable GSW to groin (anterior entry/posterior exit), and tourniquet-responsive/packable GSW right leg (through & through). In addition to the manikin itself, All TOMM packages include:

  • ITTS Advanced Remote Tablet and Software enabling wireless control of up to 12 TOMManikin units with capabilities of bleeding, breathing, multiple voice tracks, pulse rates, pulse pressure and realistic responses to responder interventions

  • 1.2 gallon onboard blood reservoir

  • 1400 Pelican Accessories Case

  • TOMManikin 12v / 5 and 10 Amp NiMH rechargeable batteries each with its own smart charger

  • T handle tool (for extremity changing) and various air & fluid replacement connectors

  • TOMManikin Operator's Manual

  • 1-year warranty

SPECS

  • All-in-one, hyper-realistic trauma simulator enabling instructors to build multiple realistic traumatic casualty scenarios with reactive patients

  • Industry-leading durable construction features a powder-coated, welded steel frame, solid steel joints and rugged silicone skin with extremities interchangeable between all TOMM platforms

  • Bends and rotates for realistic patient movement at the arms, legs and waist

  • Equipped with Advanced Remote Tablet and Software enabling wireless control of up to 12 TOMManikin units with the capabilities of bleeding, breathing, multiple voice tracks, pulse rates, pulse pressure and realistic responses to responder interventions

  • Intervention capabilities include tourniquet application, airway management (basic to advanced), needle decompression, chest tube, IV/IO, and wound packing

  • Onboard power via a 12v / 5 amp & 10 amp standard nickel metal hydride (NiMH) batteries

  • 1.2 gallon onboard blood reservoir facilitating massive bleeding from multiple locations

  • GSW (Gunshot Wound) TOMManikin features a sucking chest wound (with anterior entry / posterior exit), junctional tourniquet/packable GSW to groin (anterior entry/posterior exit), and tourniquet-responsive/packable GSW right leg (through & through)

  • Available in Light Tone or Deep Tone skin

Operational Medical Procedures:

  • Tourniquets (proximal, junctional, and abdominal tourniquets)

  • Active bleeding controllable by direct pressure on pressure points

  • Wound packing with realistic bleeding control

  • Nasopharyngeal and oral airways, supraglottic airway insertion and endotracheal intubation

  • Surgical airway with realistic bleeding and tissue dissection. 35 operative sites included

  • Remote controlled breathing rates: Slow, Normal, and Fast

  • Bilateral needle decompression; realistic sucking chest wound (with mid-axillary exit wound)

  • Realistic chest seal application & adhesion

  • Chest Tube capable (bilateral)

  • Radial pulses in uninjured upper extremities and bilateral carotid pulses

  • Variable pulse rate & pressure (Normal, bounding, thready)

  • IO (sternal & humoral) and antecubital IV access on uninjured upper extremities

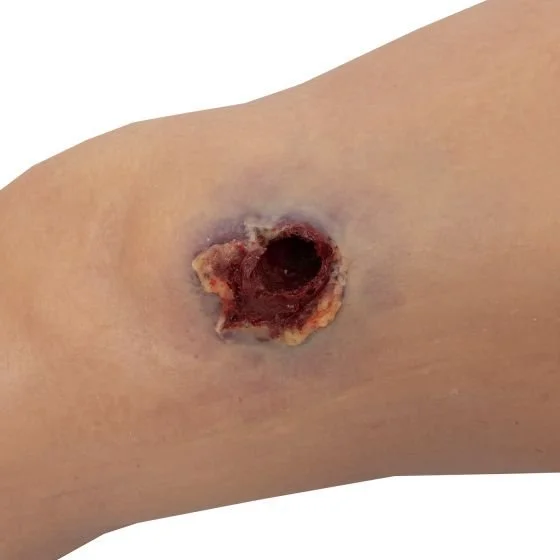

  • Through & through gunshot wound to right leg

  • Pelvic & leg injuries responsive to direct pressure and tourniquets

  • Packable gunshot wound to groin (with posterior exit wound)

GSW TOMManikin Package:

  • 1 x TOMManikin, GSW including a sucking chest wound (with anterior entry / posterior exit), junctional tourniquet/packable GSW to groin (anterior entry/posterior exit), and tourniquet-responsive/packable GSW leg (through & through)

  • 1 x ITTS Advanced Remote Tablet and software

  • 1 x 12v / 5 amp rechargeable NiMH battery with Smart Charger

  • 1 x 12v / 10 amp rechargeable NiMH battery with Smart Charger

  • 1 x 1.2 gallon onboard blood reservoir

  • 1 x T handle tool (for extremity changing) and various air & fluid replacement connectors



  • 1 x 1400 Black Pelican Accessories Case

  • 1 x TOMManikin Operator's Manual

  • 1 x 1-year warranty document

Dimensions:

  • Pelican Case: L 13.74 in. x W 11.63 in. x D 5.9 in.

  • Weight: Manikin - 180 lb | Total package: 240 lb

Part# USVS-93-0040


available on gsa…

Contract #47QSWA22D0012



 HYFIN CHEST SEAL TWIN PACK- TRAINER

Identifying the need for an effective training chest seal, North American Rescue has developed the HyFin® Chest Seal Trainer. Understanding the need and importance of the form, fit, and function of training devices, the HyFin® Chest Seal Trainer provides a cost effective solution to equip providers with the best training alternative, other than using the actual device, for both vented and occlusive chest seals. Specifically designed to increase user familiarity, the HyFin® Chest Seal Trainer utilizes the same template as the HyFin® Vent Chest Seal Twin Pack, but uses a less aggressive adhesive designed for effective chest seal application on both human skin and a training manikin. This allows for training of proper placement of not only the chest seal itself, but also of the vent over a simulated wound.

The unique formulation of adhesive gel is designed to adhere to the surface that it is applied to, but not to damage training manikin, leave behind excessive adhesive residue, or cause significant amounts of pain when used on human training subjects. Delivered in the same form and style of the HyFin® Chest Seal, the HyFin® Chest Seal Trainer provides a cost effective training solution that allows for the direct application and performance of the required motor skills and steps for proper application of an occlusive dressing. Packaged in the same rugged, compact foil pouch, the HyFin® Chest Seal Trainer also features a unique perforated package that allows the student to open only one chest seal if needed. Made in America and 100% latex free, NAR packages each chest seal using its signature Red Tip Technology® red tear notches in a rugged, easy-to-open, foil pouch to ensure high quality performance.

SPECS

  • Cost effective training solution

  • Unique adhesive gel formulation designed not damage manikins or leave behind excessive adhesive residue

  • Designed in the same form and style as the HyFin® Chest Seal

  • Optimized for direct application in training scenarios to increase user familiarity, motor skills and steps for proper occlusive dressing application

  • Each seal also comes with a gauze pad to wipe the wound surface prior to chest seal application as needed

  • Packaged with two training chest seals in one unique perforated package that allows students to only open one seal if needed

  • Made in America and 100% latex free

  • NATO NSN AVAIL: 6910-01-690-8679

Dimensions:

  • Packaged Folded: L 7.5 in. x W 4.5 in. x D 0.25 in.

  • Packaged Unfolded: L 7.5 in. x W 9 in. x D 0.125 in.

  • Chest Seal: H 6 in. x W 6 in. x D 0.1 in.

  • Weight: 2.5 oz

  • U.S. Patents: 7,504,549

Part# USVS-10-0032


available on gsa…

GSA Contract# 47QSWA22D0012

VA Federal Supply Schedule# 36F79722D0041



D-BCRK INDIVIDUAL BLEEDING CONTROL KITS - NYLON

Control the bleed with these easy-to-use tools!

Life threatening bleeding can occur from everyday emergencies such as vehicle crashes, incidents involving heavy equipment, accidental injuries from natural disasters like tornadoes, and inflicted injuries from man-made disasters such as shootings and bombings. D-BCRK Individual Bleeding Control Kits by North American Rescue are designed to provide essential equipment that empowers DOD Forces and Federal Employee responders to take immediate action in stopping life threatening bleeding.

Contained in a nylon carry bag, this life saving kit provides intuitive and easy-to-use tools that are proven to help to save lives such as the fastest, safest and most effective prehospital tourniquet in the world, the C-A-T®, quality gauze, shears, and pressure dressings/bandages..

D-BCRK Individual Bleeding Control Kits are available in Basic, Intermediate, and Advanced configurations.

SPECS

  • Designed to provide essential equipment that empowers DOD Forces and Federal Employee responders to take immediate action in stopping life threatening bleeding

  • Provides intuitive and easy-to-use tools that are proven to help to save lives

  • Available in Basic, Intermediate, and Advanced care configurations

  • Featuring the most effective, easiest-to-use, fastest-to-apply C-A-T® Tourniquet

  • Packaged in a compact, red nylon carry bag with with ample hook & loop field for attaching an ID patch

basic

The D-BCRK Individual Bleeding Control Kit provides life saving bleeding control equipment such as tourniquets, pressure dressings and gauze bandages and puts them into the hands of DOD Forces and Federal Employee responders to help control bleeding and save lives.

SPECS

  • Designed to provide essential equipment that empowers DOD Forces and Federal Employee responders to take immediate action in stopping life threatening bleeding

  • Provides intuitive and easy-to-use tools that are proven to help to save lives

  • Available in Basic, Intermediate, and Advanced care configurations

  • Featuring the most effective, easiest-to-use, fastest-to-apply C-A-T® Tourniquet

  • Packaged in a compact, red nylon carry bag with with ample hook & loop field for attaching an ID patch

Basic Kit Contents:

  • 1 x C-A-T® Tourniquet, Orange

  • 1 x 6 in. NAR ETD™ (Emergency Trauma Dressing)

  • 2 x NAR S-Rolled Gauze

  • 2 x Pair, Bear Claw Nitrile Gloves, Lg

  • 1 x NAR Trauma Shears, 7.25 in.

  • 1 x Red Nylon Bag

Dimensions:

  • H 7 in. x W 5 in. x D 2.5 in.

  • Weight: 15 oz

Part# USVS-85-2057

intermediate

Includes all equipment found in the Basic Individual Bleeding Control Kit with the added capability to treat penetrating chest wounds with the HyFin® Vent Chest Seal Twin Pack (for entrance and exit wounds).

SPECS

  • Designed to provide essential equipment that empowers DOD Forces and Federal Employee responders to take immediate action in stopping life threatening bleeding

  • Provides intuitive and easy-to-use tools that are proven to help to save lives

  • Available in Basic, Intermediate, and Advanced configurations

  • Each Advanced Individual Bleeding Control Kit contains intuitive and easy-to-use tools proven to help to save lives such as the most effective, easiest to use, fastest to apply C-A-T® Tourniquet, HyFin® Vent Chest Seal Twin Pack, and Combat Gauze® Z-fold Hemostatic Bandage

  • Packaged in a compact, red nylon carry bag with ample hook & loop area to attach an ID Patch

Advanced Kit Contents:

  • 1 x C-A-T® Tourniquet, Orange

  • 1 x 6 in. NAR ETD™ (Emergency Trauma Dressing)

  • 1 x NAR S-Rolled Gauze

  • 1 x Combat Gauze® Z-fold Hemostatic Dressing

  • 1 x HyFin® Vent Chest Seal, Twin Pack

  • 2 x Pair, Bear Claw Nitrile Gloves, Lg

  • 1 x NAR Trauma Shears, 7.25 in.

  • 1 x Red Nylon Bag

Dimensions:

  • H 7 in. x W 5 in. x D 2.5 in.

  • Weight: 16 oz

PART# USVS-85-2059

advanced

Includes all equipment found in the Basic Individual Bleeding Control Kit with the added capability to treat penetrating chest wounds with the HyFin® Vent Chest Seal Twin Pack (for entrance and exit wounds).

SPECS

  • Designed to provide essential equipment that empowers DOD Forces and Federal Employee responders to take immediate action in stopping life threatening bleeding

  • Provides intuitive and easy-to-use tools that are proven to help to save lives

  • Available in Basic, Intermediate, and Advanced configurations

  • Each Intermediate Individual Bleeding Control Kit contains intuitive and easy-to-use tools proven to help to save lives such as the most effective, easiest to use, fastest to apply C-A-T® Tourniquet and HyFin® Vent Chest Seal Twin Pack

  • Packaged in a compact, red nylon carry bag with ample hook & loop field area to attach an ID Patch

Intermediate Kit Contents:

  • 1 x C-A-T® Tourniquet, Orange

  • 1 x 6 in. NAR ETD™ (Emergency Trauma Dressing)

  • 2 x NAR S-Rolled Gauze

  • 1 x HyFin® Vent Chest Seal, Twin Pack

  • 2 x Pair, Bear Claw Nitrile Gloves, Lg

  • 1 x NAR Trauma Shears, 7.25 in.

  • 1 x Red Nylon Bag

Dimensions:

  • H 7 in. x W 5 in. x D 2.5 in.

  • Weight: 16 oz

PART# USVS-85-2058


available on gsa…

Contract:

Federal Supply Schedule: 36F79722D0041

GSA: 47QSWA22D0012
